- KY 活塞與活塞桿兩用液壓密封件(孔軸通用) SAKAGAMI 阪上 液壓 密封件
訂購致電:0755-28545652 手機:13602589346

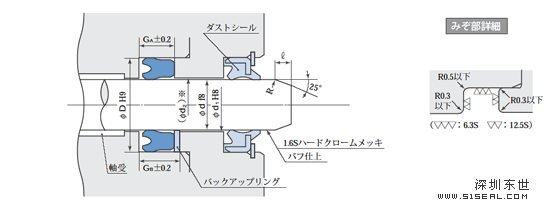

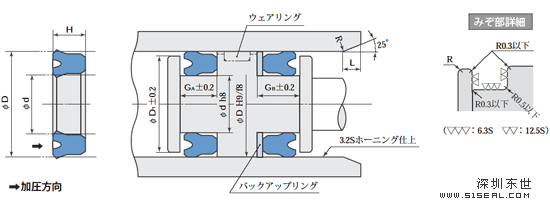

| 型號明細 | 密封件的公稱尺寸及腔體尺寸 (単位：mm） | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KY型 | 適用 （PT111） |
|||||||||||
| 標(biāo)準(zhǔn) （RN 906） |
耐熱用 （RF 905） （RF 907） |
耐寒用 （RN 903） |
d | D | H | GA | GB | D1 | d1 (參考) |
L |  |
|
| *KY-6.3 | *KY-6.3F | TE-KY-6.3 | 6.3 | 16.3 | 7.5 | 8.5 | 10.5 | 15.3 | 6.7 | 3 | 3 | |
| *KY-7.1 | TE-KY-7.1 | 7.1 | 17.1 | 7.5 | 8.5 | 10.5 | 16.1 | 7.5 | 3 | 3 | ||
| *KY-8 | TE-KY-8 | 8 | 18 | 7.5 | 8.5 | 10.5 | 17 | 8.4 | 3 | 3 | ||
| *KY-9 | TE-KY-9 | 9 | 19 | 7.5 | 8.5 | 10.5 | 18 | 9.4 | 3 | 3 | ||
| *KY-10 | *KY-10F | TE-KY-10 | 10 | 20 | 7.5 | 8.5 | 10.5 | 19 | 10.4 | 3 | 3 | |
| *KY-11.2 | TE-KY-11.2 | 11.2 | 21.2 | 7.5 | 8.5 | 10.5 | 20.2 | 11.6 | 3 | 3 | ||
| *KY-12.5 | *KY-12.5F | TE-KY-12.5 | 12.5 | 22.5 | 7.5 | 8.5 | 10.5 | 21.5 | 12.9 | 3 | 3 | |
| *KY-14 | TE-KY-14 | 14 | 24 | 7.5 | 8.5 | 10.5 | 23 | 14.4 | 3 | 3 | ||
| *KKY- 0015001 N906 |
TBE- 0015005 T111 |
15 | 25 | 6.5 | 7.5 | 9.5 | 24 | 15.4 | 3 | 3 | ||
| *KY-15 | TE-KY-15 | 15 | 28 | 10 | 11 | 13.5 | 27 | 15.4 | 3 | 3 | ||
| KY-16 | *KY-16F | TE-KY-16 | 16 | 26 | 7.5 | 8.5 | 10.5 | 25 | 16.4 | 3 | 3 | |
| *KKY- 0018001 N906 |
TE-パッキン 指示コード |
18 | 28 | 8 | 9 | 11 | 27 | 18.4 | 3 | 3 | ||
| *KY-18 | TE-KY-18 | 18 | 31 | 10 | 11 | 13.5 | 30 | 18.4 | 3 | 3 | ||
| *KY-18.5 | TE-KY-18.5 | 18.5 | 31.5 | 10 | 11 | 13.5 | 30.5 | 18.9 | 3 | 3 | ||
| KY-20 | *KY-20F | TE-KY-20 | 20 | 33 | 10 | 11 | 13.5 | 32 | 20.4 | 3 | 3 | |
| *KKY- 0020003 N906 |
TBE- 0020006 T111 |
20 | 35 | 9.5 | 10.5 | 13 | 34 | 20.4 | 3 | 3 | ||
| *KKY- 0022002 N906 |
TE-KY-22 | 22 | 35 | 8 | 9 | 11.5 | 34 | 22.4 | 3 | 3 | ||
| *KY-22 | TE-KY-22 | 22 | 35 | 10 | 11 | 13.5 | 34 | 22.4 | 3 | 3 | ||
| *KY-22.4 | *KY-22.4F | TE-KY-22.4 | 22.4 | 35.4 | 10 | 11 | 13.5 | 34.4 | 22.8 | 3 | 3 | |
| *KKY- 0025002 N906 |
*KKY- 0025001 F905 |
TE-パッキン 指示コード |
25 | 35 | 8 | 9 | 11 | 34 | 25.4 | 3 | 3 | |
| KY-25 | TE-KY-25 | 25 | 38 | 10 | 11 | 13.5 | 37 | 25.4 | 3 | 3 | ||
| KY-27 | TE-KY-27 | 27 | 40 | 10 | 11 | 13.5 | 39 | 27.4 | 3 | 3 | ||
| *KKY- 0028001 N906 |
TE-パッキン 指示コード |
28 | 40 | 10 | 11 | 13.5 | 39 | 28.4 | 3 | 3 | ||
| KY-28 | *KY-28F | TE-KY-28 | 28 | 41 | 10 | 11 | 13.5 | 40 | 28.4 | 3 | 3 | |
| *KY-30 | *KY-30F | *KY-30N | TE-KY-30 | 30 | 43 | 10 | 11 | 13.5 | 42 | 30.5 | 3 | 3 |
| *KKY- 0030003 N906 |
TBE- 0030006 T111 |
30 | 45 | 10 | 11 | 14 | 44 | 30.5 | 3 | 3 | ||
| *KY-31.5 | *KY-31.5F | TE-KY-31.5 | 31.5 | 44.5 | 10 | 11 | 13.5 | 43.5 | 32 | 3 | 3 | |
| *KY-32 | TE-KY-32 | 32 | 45 | 10 | 11 | 13.5 | 44 | 32.5 | 3 | 3 | ||
| KY-34 | *KY-34F | TE-KY-34 | 34 | 50 | 12 | 13 | 16 | 48 | 34.5 | 3.5 | 3.5 | |
| *KKY- 0035003 N906 |
TE-KY-35 | 35 | 50 | 10 | 11 | 14 | 48 | 35.5 | 3.5 | 3.5 | ||
| KY-35 | *KY-35N | TE-KY-35 | 35 | 50 | 12 | 13 | 16 | 48 | 35.5 | 3.5 | 3.5 | |
| *KY-35A | TE-KY-35A | 35 | 51 | 12 | 13 | 16 | 49 | 35.5 | 3.5 | 3.5 | ||
| KY-35.5 | *KY-35.5F | TE-KY-35.5 | 35.5 | 51.5 | 12 | 13 | 16 | 49.5 | 36 | 3.5 | 3.5 | |
| *KKY- 0036001 N906 |
TBE- 0036002 T111 |
36 | 52 | 12 | 13 | 16 | 50 | 36.5 | 3.5 | 3.5 | ||
| *KKY- 0040006 N906 |
TE-パッキン 指示コード |
40 | 55 | 10 | 11 | 14 | 53 | 40.5 | 3.5 | 3.5 | ||
| KY-40 | *KY-40F | TE-KY-40 | 40 | 56 | 12 | 13 | 16 | 54 | 40.5 | 3.5 | 3.5 | |
| *KKY- 0040003 N906 |
TBE- 0040004 T111 |
40 | 60 | 12 | 13 | 16 | 58 | 40.5 | 3.5 | 3.5 | ||
| *KKY- 0044002 N906 |
*KKY- 0044001 F905 |
TBE- 0044003 T111 |
44 | 60 | 12 | 13 | 16 | 58 | 44.5 | 3.5 | 3.5 | |
| *KKY- 0045001 N906 |
TBE- 0045007 T111 |
45 | 60 | 10 | 11 | 14 | 58 | 45.5 | 3.5 | 3.5 | ||
| *KKY- 0045003 N906 |
TBE- 0045007 T111 |
45 | 60 | 12 | 13 | 16 | 58 | 45.5 | 3.5 | 3.5 | ||
| KY-45 | *KY-45F | TE-KY-45 | 45 | 61 | 12 | 13 | 16 | 59 | 45.5 | 3.5 | 3.5 | |
| *KY-47 | TE-KY-47 | 47 | 63 | 12 | 13 | 16 | 61 | 47.5 | 3.5 | 3.5 | ||
| *KKY- 0050005 N906 |
TBE- 0050010 T111 |
50 | 65 | 10 | 11 | 14 | 63 | 50.5 | 3.5 | 3.5 | ||
| KY-50 | *KY-50F | *KY-50N | TE-KY-50 | 50 | 66 | 12 | 13 | 16 | 64 | 50.5 | 3.5 | 3.5 |
| *KKY- 0050001 N906 |
TBE- 0050001 T111 |
50 | 70 | 12 | 13 | 16 | 68 | 50.5 | 3.5 | 3.5 | ||
| *KY-53 | TE-KY-53 | 53 | 69 | 12 | 13 | 16 | 67 | 53.6 | 3.5 | 3.5 | ||
| *KKY- 0054001 N906 |
TBE- 0054004 T111 |
54 | 70 | 12 | 13 | 16 | 68 | 54.6 | 3.5 | 3.5 | ||
| *KY-55 | *KY-55F | TE-KY-55 | 55 | 71 | 12 | 13 | 16 | 69 | 55.6 | 3.5 | 3.5 | |
| *KKY- 0055005 N906 |
TE-パッキン 指示コード |
55 | 72 | 12 | 13 | 16 | 70 | 55.6 | 3.5 | 3.5 | ||
| *KKY- 0055001 N906 |
TBE- 0055003 T111 |
55 | 75 | 12 | 13 | 16 | 73 | 55.6 | 3.5 | 3.5 | ||
| *KKY- 0055003 N906 |
TE-パッキン 指示コード |
55 | 80 | 15 | 16 | 19 | 78 | 55.6 | 4 | 4 | ||
| KY-56 | *KY-56F | TE-KY-56 | 56 | 72 | 12 | 13 | 16 | 70 | 56.6 | 3.5 | 3.5 | |
| KY-60 | *KY-60F | TE-KY-60 | 60 | 76 | 12 | 13 | 16 | 74 | 60.6 | 3.5 | 3.5 | |
| *KKY- 0060002 N906 |
TBE- 0060008 T111 |
60 | 80 | 12 | 13 | 16 | 78 | 60.6 | 3.5 | 3.5 | ||
| *KY-63 | *KY-63F | TE-KY-63 | 63 | 79 | 12 | 13 | 16 | 77 | 63.6 | 3.5 | 3.5 | |
| KY-64 | *KY-64F | TE-KY-64 | 64 | 80 | 12 | 13 | 16 | 78 | 64.6 | 3.5 | 3.5 | |
| *KY-65 | *KY-65F | TE-KY-65 | 65 | 81 | 12 | 13 | 16 | 79 | 65.6 | 3.5 | 3.5 | |
| *KY-67 | *KY-67F | *KY-67N | TE-KY-67 | 67 | 87 | 15 | 16 | 19 | 85 | 67.6 | 4 | 4 |
| *KKY- 0070001 N906 |
TE-KY-70 | 70 | 90 | 12 | 13 | 16 | 88 | 70.6 | 4 | 4 | ||
| KY-70 | *KY-70F | TE-KY-70 | 70 | 90 | 15 | 16 | 19 | 88 | 70.6 | 4 | 4 | |
| *KY-71 | *KY-71F | TE-KY-71 | 71 | 91 | 15 | 16 | 19 | 89 | 71.6 | 4 | 4 | |
| *KKY- 0075001 N906 |
TE-KY-75 | 75 | 95 | 12 | 13 | 16 | 93 | 75.6 | 4 | 4 | ||
| KY-75 | *KY-75F | TE-KY-75 | 75 | 95 | 15 | 16 | 19 | 93 | 75.6 | 4 | 4 | |
| *KKY- 0080002 N906 |
TE-KY-80 | 80 | 100 | 12 | 13 | 16 | 98 | 80.6 | 4 | 4 | ||
| KY-80 | *KY-80F | TE-KY-80 | 80 | 100 | 15 | 16 | 19 | 98 | 80.6 | 4 | 4 | |
| *KKY- 0085002 N906 |
TE-KY-85 | 85 | 105 | 12 | 13 | 16 | 103 | 85.6 | 4 | 4 | ||
| *KY-85 | *KY-85F | *KY-85N | TE-KY-85 | 85 | 105 | 15 | 16 | 19 | 103 | 85.6 | 4 | 4 |
| *KKY- 0090001 N906 |
TE-KY-90 | 90 | 110 | 12 | 13 | 16 | 108 | 90.6 | 4 | 4 | ||
| KY-90 | *KY-90F | TE-KY-90 | 90 | 110 | 15 | 16 | 19 | 108 | 90.6 | 4 | 4 | |
| *KY-92 | *KY-92F | TE-KY-92 | 92 | 112 | 15 | 16 | 19 | 110 | 92.6 | 4 | 4 | |
| *KY-95 | TE-KY-95 | 95 | 115 | 15 | 16 | 19 | 113 | 95.6 | 4 | 4 | ||
| KY-100 | *KY-100F | *KY-100N | TE-KY-100 | 100 | 120 | 15 | 16 | 19 | 118 | 100.6 | 4 | 4 |
| *KKY- 0100005 N906 |
TBE- 0100004 T111 |
100 | 125 | 15 | 16 | 19 | 123 | 100.6 | 4 | 4 | ||
| KY-105 | *KY-105F | TE-KY-105 | 105 | 125 | 15 | 16 | 19 | 123 | 105.6 | 4 | 4 | |
| *KY-106 | TE-KY-106 | 106 | 126 | 15 | 16 | 19 | 124 | 106.6 | 4 | 4 | ||
| KY-110 | *KY-110F | TE-KY-110 | 110 | 130 | 15 | 16 | 19 | 128 | 110.6 | 4 | 4 | |
| *KY-112 | *KY-112F | TE-KY-112 | 112 | 132 | 15 | 16 | 19 | 130 | 112.6 | 4 | 4 | |
| *KKY- 0115001 N906 |
TBE- 0115003 T111 |
115 | 135 | 15 | 16 | 19 | 133 | 115.6 | 4 | 4 | ||
| *KY-118 | TE-KY-118 | 118 | 138 | 15 | 16 | 19 | 136 | 118.6 | 4 | 4 | ||
| KY-120 | *KY-120F | TE-KY-120 | 120 | 140 | 15 | 16 | 19 | 138 | 120.6 | 4 | 4 | |
| KY-125 | *KY-125F | TE-KY-125 | 125 | 150 | 19 | 21 | 24 | 147 | 125.7 | 5 | 5 | |
| *KKY- 0130001 N906 |
TBE- 0130007 T111 |
130 | 150 | 15 | 16 | 19 | 147 | 130.7 | 5 | 5 | ||
| *KY-130 | *KY-130F | TE-KY-130 | 130 | 155 | 19 | 21 | 24 | 152 | 130.7 | 5 | 5 | |
| *KY-132 | TE-KY-132 | 132 | 157 | 19 | 21 | 24 | 154 | 132.7 | 5 | 5 | ||
| *KKY- 0135001 N906 |
TBE- 0135004 T111 |
135 | 155 | 16 | 17 | 20 | 152 | 135.7 | 5 | 5 | ||
| *KY-135A | *KY-135AF | TE-KY-135 | 135 | 160 | 15.7 | 17 | 20 | 157 | 135.7 | 5 | 5 | |
| KY-135 | *KY-135F | TE-KY-135 | 135 | 160 | 19 | 21 | 24 | 157 | 135.7 | 5 | 5 | |
| *KKY- 0140001 N906 |
TBE- 0140001 T111 |
140 | 160 | 15 | 16 | 19 | 157 | 140.7 | 5 | 5 | ||
| KY-140 | *KY-140F | TE-KY-140 | 140 | 165 | 19 | 21 | 24 | 162 | 140.7 | 5 | 5 | |
| *KY-145 | TE-KY-145 | 145 | 170 | 19 | 21 | 24 | 167 | 145.7 | 5 | 5 | ||
| *KY-150 | TE-KY-150 | 150 | 175 | 19 | 21 | 24 | 172 | 150.7 | 5 | 5 | ||
| *KY-155A | *KY-155AF | TE-KY-155 | 155 | 180 | 15.7 | 17 | 20 | 177 | 155.7 | 5 | 5 | |
| KY-155 | *KY-155F | TE-KY-155 | 155 | 180 | 19 | 21 | 24 | 177 | 155.7 | 5 | 5 | |
| KY-160 | *KY-160F | *KY-160N | TE-KY-160 | 160 | 185 | 19 | 21 | 24 | 182 | 160.7 | 5 | 5 |
| *KY-165 | TE-KY-165 | 165 | 190 | 19 | 21 | 24 | 187 | 165.7 | 5 | 5 | ||
| *KY-170 | TE-KY-170 | 170 | 195 | 19 | 21 | 24 | 192 | 170.7 | 5 | 5 | ||
| *KY-175A | *KY-175AF | TE-KY-175 | 175 | 200 | 15.7 | 17 | 20 | 197 | 175.7 | 5 | 5 | |
| KY-175 | *KY-175F | TE-KY-175 | 175 | 200 | 19 | 21 | 24 | 197 | 175.7 | 5 | 5 | |
| KY-180 | *KY-180F | TE-KY-180 | 180 | 205 | 19 | 21 | 24 | 202 | 180.7 | 5 | 5 | |
| KY-190 | *KY-190F | TE-KY-190 | 190 | 215 | 19 | 21 | 24 | 212 | 190.8 | 5 | 5 | |
| *KKY- 0195002 N906 |
TBE- 0195003 T111 |
195 | 220 | 19 | 21 | 24 | 217 | 195.8 | 5 | 5 | ||
| *KY-199A | *KY-199AF | TE-KY-199 | 199 | 224 | 15.7 | 17 | 20 | 221 | 199.8 | 5 | 5 | |
| *KY-199 | *KY-199F | TE-KY-199 | 199 | 224 | 19 | 21 | 24 | 221 | 199.8 | 5 | 5 | |
| KY-200 | *KY-200F | TE-KY-200 | 200 | 225 | 19 | 21 | 24 | 222 | 200.8 | 5 | 5 | |
| *KKY- 0205001 N906 |
TBE- 0205002 T111 |
205 | 230 | 19 | 21 | 24 | 227 | 205.8 | 5 | 5 | ||
| *KKY- 0210002 N906 |
TBE- 0210005 T111 |
210 | 235 | 18 | 20 | 23 | 232 | 210.8 | 5 | 5 | ||
| *KKY- 0210001 N906 |
TBE- 0210005 T111 |
210 | 235 | 19 | 21 | 24 | 232 | 210.8 | 5 | 5 | ||
| *KY-212 | TE-KY-212 | 212 | 237 | 19 | 21 | 24 | 234 | 212.8 | 5 | 5 | ||
| *KKY- 0215003 N906 |
TBE- 0215001 T111 |
215 | 240 | 19 | 21 | 24 | 237 | 215.8 | 5 | 5 | ||
| *KKY- 0220001 N906 |
TBE- 0220004 T111 |
220 | 250 | 18 | 20 | 23 | 247 | 220.8 | 5 | 5 | ||
| *KY-224 | TE-KY-224 | 224 | 249 | 19 | 21 | 24 | 246 | 224.8 | 5 | 5 | ||
| *KKY- 0225001 N906 |
TE-KY-225 | 225 | 250 | 18 | 20 | 23 | 247 | 225.8 | 5 | 5 | ||
| KY-225 | *KY-225F | TE-KY-225 | 225 | 250 | 19 | 21 | 24 | 247 | 225.8 | 5 | 5 | |
| *KKY- 0230001 N906 |
TBE- 0230005 T111 |
230 | 255 | 19 | 21 | 24 | 252 | 230.8 | 5 | 5 | ||
| *KKY- 0235001 N906 |
TBE- 0235003 T111 |
235 | 260 | 19 | 21 | 24 | 257 | 235.8 | 5 | 5 | ||
| KY-236 | *KY-236F | TE-KY-236 | 236 | 261 | 19 | 21 | 24 | 258 | 236.8 | 5 | 5 | |
| *KKY- 0240003 N906 |
TBE- 0240001 T111 |
240 | 265 | 19 | 21 | 24 | 262 | 240.8 | 5 | 5 | ||
| *KKY- 0245001 N906 |
TBE- 0245002 T111 |
245 | 270 | 19 | 21 | 24 | 267 | 245.8 | 5 | 5 | ||
| KY-250 | *KY-250F | TE-KY-250 | 250 | 275 | 19 | 21 | 24 | 272 | 250.8 | 5 | 5 | |
| *KKY- 0250002 N906 |
*KKY- 0250004 F907 |
TBE- 0250003 T111 |
250 | 280 | 22 | 24 | 27 | 277 | 250.8 | 6 | 6 | |
| KKY- 0255003 N906 |
*KKY- 0255005 F907 |
TBE- 0255001 T111 |
255 | 280 | 19 | 21 | 24 | 277 | 255.8 | 6 | 6 | |
| *KKY- 0260001 N906 |
TBE- 0260001 T111 |
260 | 290 | 22 | 24 | 27 | 287 | 260.8 | 6 | 6 | ||
| KY-265 | *KY-265F | TE-KY-265 | 265 | 297 | 24 | 26 | 29 | 294 | 265.8 | 6 | 6 | |
| *KKY- 0270002 N906 |
TE-KY-270 | 270 | 300 | 18 | 20 | 23 | 297 | 270.8 | 6 | 6 | ||
| *KKY- 0270001 N906 |
TE-KY-270 | 270 | 300 | 22 | 24 | 27 | 297 | 270.8 | 6 | 6 | ||
| KY-270 | *KY-270F | TE-KY-270 | 270 | 300 | 24 | 26 | 29 | 297 | 270.8 | 6 | 6 | |
| KKY- 0275001 N906 |
TBE- 0275002 T111 |
275 | 300 | 19 | 21 | 24 | 297 | 275.8 | 6 | 6 | ||
| *KKY- 0280001 N906 |
TBE- 0280001 T111 |
280 | 310 | 22 | 24 | 27 | 307 | 280.8 | 6 | 6 | ||
| KY-280 | TE-KY-280 | 280 | 312 | 24 | 26 | 29 | 309 | 280.8 | 6 | 6 | ||
| *KKY- 0283002 N906 |
TBE- 0283001 T111 |
283 | 315 | 24 | 26 | 29 | 312 | 283.8 | 6 | 6 | ||
| *KKY- 0285002 N906 |
TBE- 0285002 T111 |
285 | 315 | 22 | 24 | 27 | 312 | 285.8 | 6 | 6 | ||
| *KKY- 0290002 N906 |
TBE- 0290003 T111 |
290 | 320 | 18 | 20 | 23 | 317 | 290.8 | 6 | 6 | ||
| KKY- 0290001 N906 |
TBE- 0290003 T111 |
290 | 320 | 22 | 24 | 27 | 317 | 290.8 | 6 | 6 | ||
| KY-300 | TE-KY-300 | 300 | 332 | 24 | 26 | 29 | 329 | 300.8 | 6 | 6 | ||
| *KKY- 0310001 N906 |
TBE- 0310002 T111 |
310 | 340 | 22 | 24 | 27 | 337 | 311 | 6 | 6 | ||
| KY-315 | TE-KY-315 | 315 | 347 | 24 | 26 | 29 | 344 | 316 | 6 | 6 | ||
| *KKY- 0323001 N906 |
TBE- 0323001 T111 |
323 | 355 | 24 | 26 | 29 | 352 | 324 | 6 | 6 | ||
| *KKY- 0330001 N906 |
TBE- 0330001 T111 |
330 | 360 | 22 | 24 | 27 | 357 | 331 | 6 | 6 | ||
| KY-335 | TE-KY-335 | 335 | 367 | 24 | 26 | 29 | 364 | 336 | 6 | 6 | ||
| *KKY- 0340002 N906 |
TBE- 0340002 T111 |
340 | 370 | 22 | 24 | 27 | 367 | 341 | 6 | 6 | ||
| *KKY- 0340001 N906 |
TE-パッキン 指示コード |
340 | 372 | 24 | 26 | 29 | 369 | 341 | 6 | 6 | ||
| *KKY- 0348002 N906 |
TBE- 0348001 T111 |
348 | 380 | 24 | 26 | 29 | 377 | 349 | 6 | 6 | ||
| KY-355 | *KY-355F | TE-KY-355 | 355 | 387 | 24 | 26 | 29 | 384 | 356 | 6 | 6 | |
| *KKY- 0360001 N906 |
TBE- 0360003 T111 |
360 | 392 | 24 | 26 | 29 | 389 | 361 | 6 | 6 | ||
| *KKY- 0365001 N906 |
TBE- 0365001 T111 |
365 | 395 | 22 | 24 | 27 | 392 | 366 | 6 | 6 | ||
| KY-368 | TE-KY-368 | 368 | 400 | 24 | 26 | 29 | 397 | 369 | 6 | 6 | ||
| KY-375 | *KY-375F | TE-KY-375 | 375 | 407 | 24 | 26 | 29 | 404 | 376 | 6 | 6 | |
| *KKY- 0388001 N906 |
TBE- 0388001 T111 |
388 | 420 | 24 | 26 | 29 | 417 | 389 | 6 | 6 | ||
| KY-400 | TE-KY-400 | 400 | 432 | 24 | 26 | 29 | 429 | 401 | 6 | 6 | ||
| *KKY- 0415001 N906 |
TBE- 0415001 T111 |
415 | 450 | 25 | 27 | 30 | 447 | 416 | 6 | 6 | ||
| *KKY- 0420001 N906 |
TE-パッキン 指示コード |
420 | 455 | 25 | 27 | 30 | 452 | 421 | 6 | 6 | ||
| KY-425 | TE-KY-425 | 425 | 457 | 24 | 26 | 29 | 454 | 426 | 6 | 6 | ||
| KY-450 | TE-KY-450 | 450 | 482 | 24 | 26 | 29 | 479 | 451 | 6 | 6 | ||
| KY-475 | TE-KY-475 | 475 | 507 | 24 | 26 | 29 | 504 | 476 | 6 | 6 | ||
| *KKY- 0480001 N906 |
TBE- 0480002 T111 |
480 | 515 | 25 | 27 | 30 | 512 | 481 | 6 | 6 | ||
| KY-500 | TE-KY-500 | 500 | 532 | 24 | 26 | 29 | 529 | 501 | 6 | 6 | ||
| *KKY- 0505001 N906 |
TBE- 0505002 T111 |
505 | 545 | 30 | 33 | 37 | 542 | 506 | 8 | 8 | ||
| *KKY- 0510001 N906 |
TBE- 0510001 T111 |
510 | 542 | 24 | 26 | 29 | 539 | 511 | 6 | 6 | ||
| *KKY- 0510002 N906 |
TBE- 0510002 T111 |
510 | 550 | 30 | 33 | 37 | 546 | 511 | 8 | 8 | ||
| *KKY- 0520001 N906 |
TBE- 0520001 T111 |
520 | 560 | 30 | 33 | 37 | 556 | 521 | 8 | 8 | ||
| *KY-530 | TE-KY-530 | 530 | 570 | 30 | 33 | 37 | 566 | 531 | 8 | 8 | ||
| KY-560 | TE-KY-560 | 560 | 600 | 30 | 33 | 37 | 596 | 561 | 8 | 8 | ||
| *KKY- 0570001 N906 |
TE-パッキン 指示コード |
570 | 610 | 30 | 33 | 37 | 606 | 571 | 8 | 8 | ||
| *KKY- 0580001 N906 |
TBE- 0580001 T111 |
580 | 620 | 30 | 33 | 37 | 616 | 581 | 8 | 8 | ||
| KY-600 | TE-KY-600 | 600 | 640 | 30 | 33 | 37 | 636 | 601 | 8 | 8 | ||
| *KY-630 | TE-KY-630 | 630 | 670 | 30 | 33 | 37 | 666 | 631 | 8 | 8 | ||
| *KKY- 0660001 N906 |
660 | 700 | 30 | 33 | 37 | 696 | 8 | 8 | ||||
| *KKY- 0690002 N906 |
690 | 730 | 30 | 33 | 37 | 726 | 8 | 8 | ||||
| *KKY- 0700001 N906 |
700 | 740 | 30 | 33 | 37 | 736 | 8 | 8 | ||||
| *KKY- 0720001 N906 |
720 | 760 | 30 | 33 | 37 | 756 | 8 | 8 | ||||
| *KKY- 0740001 N906 |
740 | 780 | 30 | 33 | 37 | 776 | 8 | 8 | ||||
| *KKY- 0780001 N906 |
780 | 820 | 30 | 33 | 37 | 816 | 8 | 8 | ||||
| *KKY- 0790001 N906 |
790 | 830 | 30 | 33 | 37 | 826 | 8 | 8 | ||||
| *KKY- 0830001 N906 |
830 | 870 | 30 | 33 | 37 | 866 | 8 | 8 | ||||
| *KKY- 0900001 N906 |
900 | 940 | 30 | 33 | 37 | 936 | 8 | 8 | ||||
| *KKY- 0960001 N906 |
960 | 1000 | 30 | 33 | 37 | 996 | 8 | 8 | ||||
| *KKY- 0960002 N906 |
960 | 1020 | 45 | 48 | 53 | 1014 | 12 | 12 | ||||
| *KKY- 1020001 N906 |
1020 | 1080 | 45 | 48 | 53 | 1074 | 12 | 12 | ||||
| *KKY- 1090001 N906 |
1090 | 1150 | 45 | 48 | 53 | 1144 | 12 | 12 | ||||
| *KKY- 1210001 N906 |
1210 | 1270 | 45 | 48 | 53 | 1264 | 12 | 12 | ||||
| *KKY- 1340001 N906 |
1340 | 1400 | 45 | 48 | 53 | 1394 | 12 | 12 | ||||
現(xiàn)在致電:0755-28545652 手機:13602589346
