- 活塞桿密封 TDMI密封圈 液壓 密封件
訂購致電:0755-28545652 手機:13602589346
標準材料,密封體:填充聚四氟乙烯F-PTFE,彈性體:丁腈橡膠NBR或聚氨酯PU.應用范圍:JDMI用于多種液態應用的串聯式密封，屬內部密封。主要用于活塞和柱塞密封。可在礦物油、改性礦物油、難燃液壓油和壓縮空氣中使用。JDMI由一個雙唇口的彈性體，一個耐磨環組成的組合密封。安裝前，密封唇口向外突出，安裝后緊壓活塞桿，為耐磨環提供彈力，即使在沒有壓力的情況下也能達到優秀的密封效果�？煞蛛x密封環兩邊的液體，也適用于油室的密封，以阻止和其它液體的入侵。由于其優秀的干運轉性能，可同時作流體密封和防塵密封。設計選用時可參考Hunger公司TDMI系列標準.特點:安裝簡易,高耐磨,低摩擦，無粘滑現象
工況條件
工況條件
|
速 度 |
壓力范圍 |
溫度范圍 |
介 質 |
可供直徑范圍 |
|
|
0～25MPa |
|
石油基液壓油，難燃液壓液，水和其它 |
20 |
|
軸徑d e8 |
溝槽外徑D H9 |
槽寬L D10 |
H |
|
20-56 |
d+10 |
16 |
15 |
|
57-140 |
d+13 |
16 |
15 |
|
>140 |
d+15 |
16 |
15 |

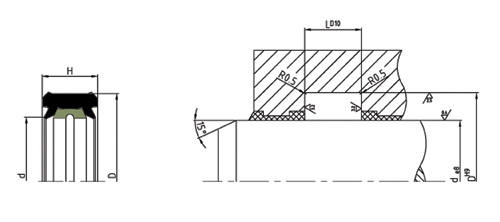

| TDMI 活塞桿密封 >>>>>>>>>>>>格萊圈(格來圈)的安裝方法 | |||||||||||||
| 訂貨號 | d e8 | D H9 | H | L D10 | e | 訂貨號 | d e8 | D H9 | H | L D10 | e | ||
| TDMI0200 | 20 | 30 | 15 | 16 | 6 | TDMI1400 | 140 | 153 | 15 | 16 | 10 | ||
| TDMI0220 | 22 | 32 | 15 | 16 | 6 | TDMI1500 | 150 | 162 | 15 | 16 | 10 | ||
| TDMI0250 | 25 | 35 | 15 | 16 | 6 | TDMI1500 | 150 | 165 | 15 | 16 | 10 | ||
| TDMI0280 | 28 | 38 | 15 | 16 | 6 | TDMI1600 | 160 | 175 | 15 | 16 | 10 | ||
| TDMI0300 | 30 | 40 | 15 | 16 | 6 | TDMI1650 | 165 | 180 | 15 | 16 | 10 | ||
| TDMI0320 | 32 | 42 | 15 | 16 | 6 | TDMI1700 | 170 | 185 | 15 | 16 | 10 | ||
| TDMI0350 | 35 | 45 | 15 | 16 | 6 | TDMI1800 | 180 | 195 | 15 | 16 | 10 | ||
| TDMI0360 | 36 | 46 | 15 | 16 | 6 | TDMI1850 | 185 | 200 | 15 | 16 | 10 | ||
| TDMI0400 | 40 | 50 | 15 | 16 | 6 | TDMI1900 | 190 | 205 | 15 | 16 | 10 | ||
| TDMI0420 | 42 | 52 | 15 | 16 | 6 | TDMI2000 | 200 | 215 | 15 | 16 | 10 | ||
| TDMI0450 | 45 | 55 | 15 | 16 | 6 | TDMI2200 | 220 | 235 | 15 | 16 | 10 | ||
| TDMI0500 | 50 | 60 | 15 | 16 | 6 | TDMI2250 | 225 | 240 | 15 | 16 | 10 | ||
| TDMI0550 | 55 | 65 | 15 | 16 | 6 | TDMI2300 | 230 | 245 | 15 | 16 | 10 | ||
| TDMI0560 | 56 | 66 | 15 | 16 | 6 | TDMI2400 | 240 | 255 | 15 | 16 | 10 | ||
| TDMI0600 | 60 | 73 | 15 | 16 | 7 | TDMI2500 | 250 | 265 | 15 | 16 | 10 | ||
| TDMI0630 | 63 | 76 | 15 | 16 | 7 | TDMI2600 | 260 | 275 | 15 | 16 | 10 | ||
| TDMI0650 | 65 | 78 | 15 | 16 | 7 | TDMI2800 | 280 | 295 | 15 | 16 | 10 | ||
| TDMI0700 | 70 | 83 | 15 | 16 | 7 | TDMI2900 | 290 | 305 | 15 | 16 | 10 | ||
| TDMI0720 | 72 | 85 | 15 | 16 | 7 | TDMI3000 | 300 | 312 | 15 | 16 | 15 | ||
| TDMI0750 | 75 | 88 | 15 | 16 | 7 | TDMI3000 | 300 | 315 | 15 | 16 | 15 | ||
| TDMI0800 | 80 | 93 | 15 | 16 | 7 | TDMI3200 | 320 | 335 | 15 | 16 | 15 | ||
| TDMI0850 | 85 | 98 | 15 | 16 | 7 | TDMI3500 | 350 | 365 | 15 | 16 | 15 | ||
| TDMI0900 | 90 | 103 | 15 | 16 | 7 | TDMI3600 | 360 | 375 | 15 | 16 | 15 | ||
| TDMI0950 | 95 | 108 | 15 | 16 | 7 | TDMI3800 | 380 | 395 | 15 | 16 | 15 | ||
| TDMI1000 | 100 | 113 | 15 | 16 | 7 | TDMI4000 | 400 | 415 | 15 | 16 | 15 | ||
| TDMI1050 | 105 | 118 | 15 | 16 | 10 | TDMI4500 | 450 | 465 | 15 | 16 | 15 | ||
| TDMI1100 | 110 | 120 | 15 | 16 | 10 | TDMI4800 | 480 | 495 | 15 | 16 | 15 | ||
| TDMI1100 | 110 | 123 | 15 | 16 | 10 | TDMI5000 | 500 | 515 | 15 | 16 | 15 | ||
| TDMI1150 | 115 | 128 | 15 | 16 | 10 | TDMI5500 | 550 | 565 | 15 | 16 | 15 | ||
| TDMI1200 | 120 | 133 | 15 | 16 | 10 | TDMI5600 | 560 | 575 | 15 | 16 | 15 | ||
| TDMI1250 | 125 | 138 | 15 | 16 | 10 | TDMI6000 | 600 | 615 | 15 | 16 | 15 | ||
| TDMI1300 | 130 | 143 | 15 | 16 | 10 | TDMI6500 | 650 | 665 | 15 | 16 | 15 | ||
