- BRN2型 BRN3型-NOK 密封件 小提示：CTRL+F 可直接查到規格
訂購致電:0755-28545652 手機:13602589346

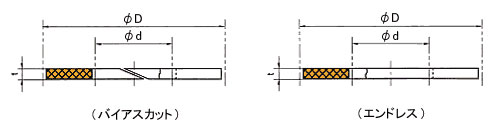

| 切口類型 | 斜截 | 無接頭 | ||||||
| NOK型式 | BRT2 | BRT2 | BRN2 | BRT3 | BRT3 | BRN3 | ||
| NOK材料標志 | 19YF | 31BF | 80NP | 19YF | 31BF | 80NP | ||
| 支承環的 公稱尺寸 |
NOK零件號 | NOK零件號 | NOK零件號 | NOK零件號 | NOK零件號 | NOK零件號 | ||
| d | D | t | ||||||
| 8 | 18 | 2 | GN4773V0 | GN4773F0 | GN9101O0 | GN0725V0 | GN0725F0 | GN9101O1 |
| 10 | 20 | GN4774V0 | GN4774F0 | GN9102O0 | GN0733V0 | GN0733F0 | GN9102O1 | |
| 14 | 24 | GN4775V0 | GN4775F0 | GN9103O0 | GN0745V0 | GN0745F0 | GN9103O1 | |
| 15 | 28 | GN4776V0 | GN4776F0 | GN9104O0 | GN6445V0 | GN6445F0 | GN9104O1 | |
| 16 | 26 | GN4777V0 | GN4777F0 | GN9105O0 | GN0751V0 | GN0751F0 | GN9105O1 | |
| 18 | GN4778V0 | GN4778F0 | GN9106O0 | GN6377V0 | GN6377F0 | GN9106O1 | ||
| 31 | GN4779V0 | GN4779F0 | GN9107O0 | GN6446V0 | GN6446F0 | GN9107O1 | ||
| 20 | 28 | GN4780V0 | GN4780F0 | GN9108O0 | GN6447V0 | GN6447F0 | GN9108O1 | |
| 30 | GN4781V0 | GN4781F0 | GN9109O0 | GN0762V0 | GN0762F0 | GN9109O1 | ||
| 33 | GN4782V0 | GN4782F0 | GN9110O0 | GN6448V0 | GN6448F0 | GN9110O1 | ||
| 22 | 35 | GN4783V0 | GN4783F0 | GN9111O0 | GN6449V0 | GN6449F0 | GN9111O1 | |
| 22.4 | 30 | GN4784V0 | GN4784F0 | GN9112O0 | GN6450V0 | GN6450F0 | GN9112O1 | |
| 33 | GN4785V0 | GN4785F0 | GN9113O0 | GN6451V0 | GN6451F0 | GN9113O1 | ||
| 23.5 | 31.5 | GN4786V0 | GN4786F0 | GN9114O0 | GN6452V0 | GN6452F0 | GN9114O1 | |
| 25 | 35 | GN4787V0 | GN4787F0 | GN9115O0 | GN0781V0 | GN0781F0 | GN9115O1 | |
| 38 | GN4788V0 | GN4788F0 | GN9116O0 | GN6453V0 | GN6453F0 | GN9116O1 | ||
| 25.5 | 35.5 | GN4789V0 | GN4789F0 | GN9117O0 | GN6454V0 | GN6454F0 | GN9117O1 | |
| 27 | 40 | 3 | GN4790V0 | GN4790F0 | GN9118O0 | GN6455V0 | GN6455F0 | GN9118O1 |
| 28 | 35.5 | GN4791V0 | GN4791F0 | GN9119O0 | GN6456V0 | GN6456F0 | GN9119O1 | |
| 40 | GN4792V0 | GN4792F0 | GN9120O0 | GN6457V0 | GN6457F0 | GN9120O1 | ||
| 41 | GN4793V0 | GN4793F0 | GN9121O0 | GN6458V0 | GN6458F0 | GN9121O1 | ||
| 30 | 40 | GN4794V0 | GN4794F0 | GN9122O0 | GN6361V0 | GN6361F0 | GN9122O1 | |
| 43 | GN4795V0 | GN4795F0 | GN9123O0 | GN6459V0 | GN6459F0 | GN9123O1 | ||
| 31.5 | 41.5 | GN4796V0 | GN4796F0 | GN9124O0 | GN6460V0 | GN6460F0 | GN9124O1 | |
| 44.5 | GN4797V0 | GN4797F0 | GN9125O0 | GN6461V0 | GN6461F0 | GN9125O1 | ||
| 34 | 50 | GN4798V0 | GN4798F0 | GN9126O0 | GN6462V0 | GN6462F0 | GN9126O1 | |
| 35 | 45 | GN4799V0 | GN4799F0 | GN9127O0 | GN6463V0 | GN6463F0 | GN9127O1 | |
| 50 | GN4800V0 | GN4800F0 | GN9128O0 | GN0816V0 | GN0816F0 | GN9128O1 | ||
| 35.5 | 45 | GN4801V0 | GN4801F0 | GN9129O0 | GN6464V0 | GN6464F0 | GN9129O1 | |
| 51.5 | GN4802V0 | GN4802F0 | GN9130O0 | GN6330V0 | GN6330F0 | GN9130O1 | ||
| 40 | 50 | GN4050V0 | GN4050F0 | GN9131O0 | GN6465V0 | GN6465F0 | GN9131O1 | |
| 56 | GN4803V0 | GN4803F0 | GN9132O0 | GN6466V0 | GN6466F0 | GN9132O1 | ||
| 45 | 55 | GN4804V0 | GN4804F0 | GN9133O0 | GN6467V0 | GN6467F0 | GN9133O1 | |
| 56 | GN4805V0 | GN4805F0 | GN9134O0 | GN6468V0 | GN6468F0 | GN9134O1 | ||
| 61 | GN4806V0 | GN4806F0 | GN9135O0 | GN6469V0 | GN6469F0 | GN9135O1 | ||
| 47 | GN4807V0 | GN4807F0 | GN9136O0 | GN6470V0 | GN6470F0 | GN9136O1 | ||
| 63 | GN4808V0 | GN4808F0 | GN9137O0 | GN6471V0 | GN6471F0 | GN9137O1 | ||
| 50 | 60 | GN4335V0 | GN4335F0 | GN9138O0 | GN6302V0 | GN6302F0 | GN9138O1 | |
| 66 | GN4809V0 | GN4809F0 | GN9139O0 | GN6329V0 | GN6329F0 | GN9139O1 | ||
| 53 | 63 | GN4693V0 | GN4693F0 | GN9140O0 | GN6413V0 | GN6413F0 | GN9140O1 | |
| 55 | 65 | GN4810V0 | GN4810F0 | GN9141O0 | GN6472V0 | GN6472F0 | GN9141O1 | |
| 71 | GN4811V0 | GN4811F0 | GN9142O0 | GN6473V0 | GN6473F0 | GN9142O1 | ||
| 56 | 66 | GN4766V0 | GN4766F0 | GN9143O0 | GN6474V0 | GN6474F0 | GN9143O1 | |
| 60 | 70 | GN4676V0 | GN4676F0 | GN9144O0 | GN6444V0 | GN6444F0 | GN9144O1 | |
| 71 | GN4812V0 | GN4812F0 | GN9145O0 | GN6475V0 | GN6475F0 | GN9145O1 | ||
| 76 | GN4813V0 | GN4813F0 | GN9146O0 | GN6476V0 | GN6476F0 | GN9146O1 | ||
| 63 | 73 | GN4814V0 | GN4814F0 | GN9147O0 | GN6477V0 | GN6477F0 | GN9147O1 | |
| 64 | 80 | GN4815V0 | GN4815F0 | GN9148O0 | GN6478V0 | GN6478F0 | GN9148O1 | |
| 65 | 75 | GN4816V0 | GN4816F0 | GN9149O0 | GN6479V0 | GN6479F0 | GN9149O1 | |
| 67 | 77 | GN4697V0 | GN4697F0 | GN9150O0 | GN6480V0 | GN6480F0 | GN9150O1 | |
| 70 | 80 | GN4651V0 | GN4651F0 | GN9092O0 | GN6362V1 | GN6362F0 | GN9092O1※ | |
| 90 | GN4817V0 | GN4817F0 | GN9151O0 | GN0910V0 | GN0910F0 | GN9151O1 | ||
| 71 | 80 | GN4818V0 | GN4818F0 | GN9152O0 | GN6481V0 | GN6481F0 | GN9152O1 | |
| 81 | GN4819V0 | GN4819F0 | GN9153O0 | GN6482V0 | GN6482F0 | GN9153O1 | ||
| 75 | 95 | GN4524V0 | GN4524F0 | GN9154O0 | GN0920V0 | GN0920F0 | GN9154O1 | |
| 80 | 90 | GN4820V0 | GN4820F0 | GN9155O0 | GN6483V0 | GN6483F0 | GN9155O1 | |
| 100 | GN4095V1 | GN4095F0 | GN9156O0 | GN0927V0 | GN0927F0 | GN9156O1 | ||
| 85 | GN4687V0 | GN4687F0 | GN9091O0 | GN6484V0 | GN6484F0 | GN9091O1 | ||
| 105 | GN4821V0 | GN4821F0 | GN9157O0 | GN0932V0 | GN0932F0 | GN9157O1 | ||
| 90 | GN4698V0 | GN4698F0 | GN9158O0 | GN6485V0 | GN6485F0 | GN9158O1 | ||
| 110 | GN4109V0 | GN4109F0 | GN9159O0 | GN0939V0 | GN0939F0 | GN9159O1 | ||
| 95 | GN4822V0 | GN4822F0 | GN9160O0 | GN6486V0 | GN6486F0 | GN9160O1 | ||
| 115 | GN4823V0 | GN4823F0 | GN9161O0 | GN0945V0 | GN0945F0 | GN9161O1 | ||
| 98 | 112 | GN4824V0 | GN4824F0 | GN9162O0 | GN6487V0 | GN6487F0 | GN9162O1 | |
| 100 | 115 | GN4512V0 | GN4512F0 | GN9163O0 | GN6488V0 | GN6488F0 | GN9163O1 | |
| 120 | GN4119V0 | GN4119F0 | GN9164O0 | GN0952V0 | GN0952F0 | GN9164O1 | ||
| 105 | 125 | GN4825V0 | GN4825F0 | GN9165O0 | GN0959V0 | GN0959F0 | GN9165O1 | |
| 106 | 120 | GN4826V0 | GN4826F0 | GN9166O0 | GN6489V0 | GN6489F0 | GN9166O1 | |
| 112 | 125 | GN4827V0 | GN4827F0 | GN9167O0 | GN6490V0 | GN6490F0 | GN9167O1 | |
| 132 | GN4828V0 | GN4828F0 | GN9168O0 | GN0970V0 | GN0970F0 | GN9168O1 | ||
| 120 | 140 | GN4132V0 | GN4132F0 | GN9169O0 | GN0982V0 | GN0982F0 | GN9169O1 | |
| 125 | GN4481V0 | GN4481F0 | GN9170O0 | GN6491V0 | GN6491F0 | GN9170O1 | ||
| 150 | GN4401V0 | GN4401F0 | GN9171O0 | GN6135V0 | GN6135F0 | GN9171O1 | ||
| 135 | 160 | GN4829V0 | GN4829F0 | GN9172O0 | GN6492V0 | GN6492F0 | GN9172O1 | |
| 136 | 150 | GN4830V0 | GN4830F0 | GN9173O0 | GN6493V0 | GN6493F0 | GN9173O1 | |
| 140 | 165 | GN4831V0 | GN4831F0 | GN9174O0 | GN6494V0 | GN6494F0 | GN9174O1 | |
| 145 | 160 | GN4551V0 | GN4551F0 | GN9175O0 | GN6495V0 | GN6495F0 | GN9175O1 | |
| 170 | GN4832V0 | GN4832F0 | GN9176O0 | GN6496V0 | GN6496F0 | GN9176O1 | ||
| 150 | 165 | GN4833V0 | GN4833F0 | GN9177O0 | GN6497V0 | GN6497F0 | GN9177O1 | |
| 155 | 170 | 4 | GN4834V0 | GN4834F0 | GN9178O0 | GN6498V0 | GN6498F0 | GN9178O1 |
| 180 | GN4157V0 | GN4157F0 | GN9179O0 | GN1016V0 | GN1016F0 | GN9179O1 | ||
| 160 | 175 | GN4835V0 | GN4835F0 | GN9180O0 | GN6499V0 | GN6499F0 | GN9180O1 | |
| 185 | GN4540V0 | GN4540F0 | GN9181O0 | GN1020V0 | GN1020F0 | GN9181O1 | ||
| 165 | 180 | GN4836V0 | GN4836F0 | GN9182O0 | GN6500V0 | GN6500F0 | GN9182O1 | |
| 170 | GN4837V0 | GN4837F0 | GN9183O0 | GN6501V0 | GN6501F0 | GN9183O1 | ||
| 200 | GN4838V0 | GN4838F0 | GN9184O0 | GN6502V0 | GN6502F0 | GN9184O1 | ||
| 175 | 190 | GN4839V0 | GN4839F0 | GN9185O0 | GN6503V0 | GN6503F0 | GN9185O1 | |
| 200 | GN4460V0 | GN4460F0 | GN9186O0 | GN1031V0 | GN1031F0 | GN9186O1 | ||
| 180 | GN4470V0 | GN4470F0 | GN9187O0 | GN6372V0 | GN6372F0 | GN9187O1 | ||
| 205 | GN4427V0 | GN4427F0 | GN9188O0 | GN1035V0 | GN1035F0 | GN9188O1 | ||
| 190 | 200 | GN4840V0 | GN4840F0 | GN9189O0 | GN6504V0 | GN6504F0 | GN9189O1 | |
| 210 | GN4841V0 | GN4841F0 | GN9190O0 | GN6505V0 | GN6505F0 | GN9190O1 | ||
| 200 | 220 | GN4385V0 | GN4385F0 | GN9191O0 | GN6276V0 | GN6276F0 | GN9191O1 | |
| 225 | GN4560V0 | GN4560F0 | GN9192O0 | GN1050V0 | GN1050F0 | GN9192O1 | ||
| 204 | 224 | GN4842V0 | GN4842F0 | GN9193O0 | GN6506V0 | GN6506F0 | GN9193O1 | |
| 205 | 220 | GN4843V0 | GN4843F0 | GN9194O0 | GN6507V0 | GN6507F0 | GN9194O1 | |
| 210 | 230 | GN4627V0 | GN4627F0 | GN9195O0 | GN6352V0 | GN6352F0 | GN9195O1 | |
| 220 | 240 | GN4444V0 | GN4444F0 | GN9196O0 | GN6508V0 | GN6508F0 | GN9196O1 | |
| 225 | 245 | GN4844V0 | GN4844F0 | GN9197O0 | GN6509V0 | GN6509F0 | GN9197O1 | |
| 250 | GN4416V0 | GN4416F0 | GN9045O0 | GN1065V0 | GN1065F0 | GN9045O1 | ||
| 230 | GN4635V0 | GN4635F0 | GN9047O0 | GN6510V0 | GN6510F0 | GN9047O1 | ||
| 240 | 260 | GN4845V0 | GN4845F0 | GN9198O0 | GN6511V0 | GN6511F0 | GN9198O1 | |
| 250 | 270 | GN4459V0 | GN4459F0 | GN9199O0 | GN6512V0 | GN6512F0 | GN9199O1 | |
| 275 | GN4191V0 | GN4191F0 | GN9200O0 | GN1078V0 | GN1078F0 | GN9200O1 | ||
| 255 | 280 | GN4846V0 | GN4846F0 | GN9201O0 | GN6513V0 | GN6513F0 | GN9201O1 | |
| 260 | 285 | GN4847V0 | GN4847F0 | GN9202O0 | GN6514V0 | GN6514F0 | GN9202O1 | |
| 265 | 290 | GN4848V0 | GN4848F0 | GN9203O0 | GN6318V0 | GN6318F0 | GN9203O1 | |
| 297 | GN4849V0 | GN4849F0 | GN9204O0 | GN6515V0 | GN6515F0 | GN9204O1 | ||
| 270 | 295 | GN4850V0 | GN4850F0 | GN9205O0 | GN6516V0 | GN6516F0 | GN9205O1 | |
| 300 | GN4851V0 | GN4851F0 | GN9206O0 | GN1089V0 | GN1089F0 | GN9206O1 | ||
| 275 | GN4852V0 | GN4852F0 | GN9207O0 | GN6517V0 | GN6517F0 | GN9207O1 | ||
| 280 | 305 | GN4410V0 | GN4410F0 | GN9208O0 | GN6518V0 | GN6518F0 | GN9208O1 | |
| 312 | GN4853V0 | GN4853F0 | GN9209O0 | GN6519V0 | GN6519F0 | GN9209O1 | ||
| 290 | 315 | GN4854V0 | GN4854F0 | GN9210O0 | GN6520V0 | GN6520F0 | GN9210O1 | |
| 300 | 325 | GN4855V0 | GN4855F0 | GN9211O0 | GN6521V0 | GN6521F0 | GN9211O1 | |
| 332 | GN4856V0 | GN4856F0 | GN9212O0 | GN6522V0 | GN6522F0 | GN9212O1 | ||
